Automated Deployments

See pipeline graph for details on the visual elements.

Vespa Cloud provides:

• A CD test framework for safe deployments to production zones.
• Multi-zone deployments with orchestration and test steps.

This guide goes through details of an orchestrated deployment. Read / try production deployment first to have a baseline understanding. The developer guide is useful for writing tests. Use example GitHub Actions for automation.

CD tests

Before deployment in production zones, system tests and staging tests are run. Tests are run in a dedicated and downsized environment. These tests are optional, see details in the sections below. Status and logs of ongoing tests can be found in the Deployment view in the Vespa Cloud Console:

These tests are also run during Vespa Cloud upgrades.

Find deployable example applications in CI-CD.

System tests

When a system test is run, the application is deployed in the test environment. The system test suite is then run against the endpoints of the test deployment. The test deployment is empty when the test execution begins. The application package and Vespa platform version is the same as that to be deployed to production.

A test suite includes at least one system test. An application can be deployed to a production zone without system tests - this step will then only test that the application starts successfully. See production deployment for an example without tests.

If the production zones span multiple cloud providers (e.g., both AWS and GCP), system tests are run separately for each cloud provider, using test nodes from that provider. This ensures the application starts and works correctly on each provider's infrastructure before production deployment.

Read more about system tests.

Staging tests

A staging test verifies the transition of a deployment of a new application package - i.e., from application package Appold to Appnew. A test suite includes at least one staging setup, and staging test.

1. All production zone deployments are polled for the current versions. As there can be multiple versions already being deployed (i.e. multiple Appold), there can be a series of staging test runs.
2. The application at revision Appold is deployed in the staging environment.
3. The staging setup test code is run, typically making the cluster reasonably similar to a production cluster.
4. The test deployment is then upgraded to application revision Appnew.
5. Finally, the staging test code is run, to verify the deployment works as expected after the upgrade.

An application can be deployed to a production zone without staging tests - this step will then only test that the application starts successfully before and after the change. See production deployment for an example without tests.

Like system tests, staging tests are run separately for each cloud provider when the production zones span multiple providers.

Read more about staging tests.

Disabling tests

To deploy without testing, remove the test files from the application package. Tests are always run, regardless of deployment.xml.

To temporarily deploy without testing, run deploy and hit the "Abort" button (see illustration above, hover over the test step in the Console) - this skips the test step and makes the orchestration progress to the next step.

Running tests only

To run a system test, without deploying to any nodes after, add a new test instance. In deployment.xml, add the instance without dev orprod elements, like:

<deployment version="1.0">
    <instance id="test-only">
        <test />
    </instance>
    ...
</deployment>

Note that this will leave an empty instance in the console, as the deployment is for testing only, so no resources deployed to after test.

Make sure to run vespa prod deploy to invoke the pipeline for testing, and use a separate application for this test.

Deployment orchestration

The deployment orchestration is flexible. One can configure dependencies between deployments to production zones, production verification tests, and configured delays; by ordering these in parallel and serial blocks of steps:

Pipeline graph

The deployment pipeline is visualized as a graph in the Vespa Cloud Console. Each node represents a step in the pipeline, and edges show dependencies between steps. Hover over any node to see details and available actions.

Node shapes

Visual indicators

Each version deployed through the pipeline is assigned a distinct color. This makes it easy to see at a glance which zones are on the same version and where a rollout is in progress. A thumbtack icon on a node indicates that the version is pinned.

On a higher level, instances can also depend on each other in the same way. This makes it easy to configure a deployment process which gradually rolls out changes to increasingly larger subsets of production nodes, as confidence grows with successful production verification tests. Refer to deployment.xml for details.

Deployments run sequentially by default, but can be configured to run in parallel. Inside each zone, Vespa Cloud orchestrates the deployment, such that the change is applied without disruption to read or write traffic against the application. A production deployment in a zone is complete when the new configuration is active on all nodes.

Most changes are instant, making this a quick process. If node restarts are needed, e.g., during platform upgrades, these will happen automatically and safely as part of the deployment. When this is necessary, deployments will take longer to complete.

System and staging tests, if present, must always be successfully run before the application package is deployed to production zones.

Version progression

The deployment pipeline deploys one revision at a time through the production zones. When a revision is being deployed, it must complete deployment to all declared production zones before the next revision begins its production rollout. System and staging tests for newer revisions may run in parallel, but production deployment is serialized.

For example, if build 90 is being deployed to the second of two production zones, build 91 will not start deploying to the first zone until build 90 has completed in all zones — even if build 91 has already passed system and staging tests.

Superseding a version

To override the currently deploying revision and force a newer build through the pipeline, hover over the instance node in the pipeline graph and use the TARGET VERSIONS controls. Select the desired build number from the revision dropdown and click deploy. This updates the instance's deployment target. Any running production job for the old revision will be aborted, and the pipeline will start deploying the new revision from the first production zone.

To cancel the currently deploying revision without selecting a new one, click cancel. This lets the pipeline pick the next revision automatically.

Pinning versions

Pinning locks the pipeline to a specific platform version or application revision, preventing automatic upgrades. This is useful for forcing a downgrade, holding a known-good revision during an incident, or preventing the system from picking up a new platform version.

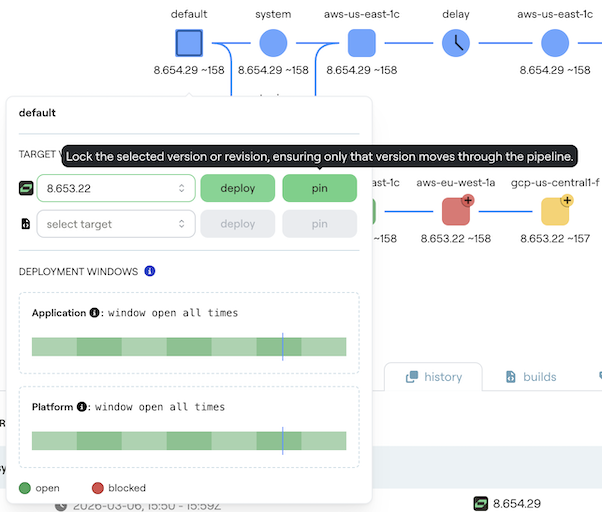

To pin a version, hover over the instance node in the pipeline graph. Under TARGET VERSIONS, select the desired version from the dropdown and click pin. A reason is required — enter a description and click submit pin. Platform and revision can be pinned independently.

While pinned, no newer platform versions or revisions will be deployed for the pinned dimension. The dropdown and deploy button are disabled to prevent accidental changes. To unpin, hover over the instance node and click unpin, which allows newer versions to move through the pipeline again.

For example, to roll back to a previous revision:

1. Select the older build number from the revision dropdown.
2. Click pin and provide a reason (e.g., "rollback due to regression in build 91").
3. The pipeline will deploy the pinned build to all production zones.
4. Once the issue is resolved, click unpin to resume normal deployments.

Cooldown after failures

When a production deployment fails repeatedly, an exponential cooldown is applied before the job is automatically retried. The cooldown period grows with the time between the first failure and the last completed run. This prevents the system from continuously retrying a failing deployment.

The cooldown applies only when the target versions match those of the failing runs. If the target changes (e.g., a new revision is set as the deployment target), the cooldown resets and the new revision can be deployed immediately.

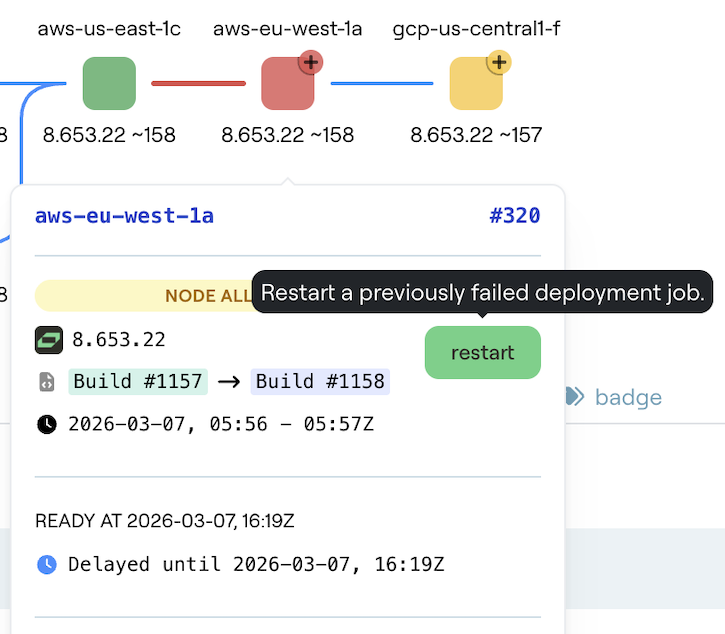

To manually re-trigger a failed deployment and bypass the cooldown, hover over the failed zone node in the pipeline graph and click restart.

Pausing deployments to a zone

To temporarily hold off deployments to a specific production zone, hover over the zone node in the pipeline graph and click defer. This postpones deployments for 72 hours. Click enable to resume scheduling before the deferral period expires.

Source code repository integration

Each new submission is assigned an increasing build number, which can be used to track the roll-out of the new package to the instances and their zones. With the submission, add a source code repository reference for easy integration - this makes it easy to track changes:

Add the source diff link to the pull request - see example GitHub Action:

$ vespa prod deploy \
  --source-url "$(git config --get remote.origin.url | sed 's+git@\(.*\):\(.*\)\.git+https://\1/\2+')/commit/$(git rev-parse HEAD)"

Block-windows

Use block-windows to block deployments during certain windows throughout the week, e.g., avoid rolling out changes during peak hours / during vacations. Hover over the instance (here "default") to find block status - see block-change:

Validation overrides

Some configuration changes are potentially destructive / change the application behavior - examples are removing fields and changing linguistic processing. These changes are disallowed by default, the deploy-command will fail. To override and force a deploy, use a validation override:

<validation-overrides>
    <allow until="YYYY-MM-DD"
           comment="Use fewer dimensions">tensor-type-change</allow>
</validation-overrides>

Production tests

Production tests are optional and configured in deployment.xml. A production test is placed after a deployment zone in the pipeline and acts as a gate: if it fails, the rollout stops and subsequent zones will not receive the new version. This is useful in multi-zone deployments where the first zone serves as a canary. Production tests run against the endpoints of the preceding production region in the pipeline.

Deploying Components

Vespa is backwards compatible within major versions, and major versions rarely change. This means that Components compiled against an older version of Vespa APIs can always be run on the same major version. However, if the application package is compiled against a newer API version, and then deployed to an older runtime version in production, it might fail. See vespa:compileVersion for how to solve this.

Automating with GitHub Actions

Auto-deploy production applications using GitHub Actions - examples:

• deploy-vector-search.yaml deploys an application to a production environment - a good example to start from!
• deploy.yaml deploys an application with basic HTTP tests.
• deploy-vespa-documentation-search.yaml deploys an application with Java-tests.

The automation scripts use an API-KEY to deploy:

$ vespa auth api-key

This creates a key, or outputs:

Error: refusing to overwrite /Users/me/.vespa/mytenant.api-key.pem
Hint: Use -f to overwrite it

This is your public key:
-----BEGIN PUBLIC KEY-----
ABCDEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEB2UFsh8ZjoWNtkrDhyuMyaZQe1ze
qLB9qquTKUDQTuM2LOr2dawUs02nfSc3UTfC08Lgr/dvnTnHpc0/fY+3Aw==
-----END PUBLIC KEY-----

Its fingerprint is:
12:34:56:78:65:30:77:90:30:ab:83:ee:a9:67:68:2c

To use this key in Vespa Cloud click 'Add custom key' at
https://console.vespa-cloud.com/tenant/mytenant/account/keys
and paste the entire public key including the BEGIN and END lines.

This means, if there is a key, it is not overwritten, it is safe to run. Make sure to add the deploy-key to the tenant using the Vespa Cloud Console.

After the deploy-key is added, everything is ready for deployment.

You can upload or create new Application keys in the console, and store them as a secret in the repository like the GitHub actions example above.

Some services like Travis CI do not accept multi-line values for Environment Variables in Settings. A workaround is to use the output of

$ openssl base64 -A -a < mykey.pem && echo

in a variable, say VESPA_MYAPP_API_KEY, in Travis Settings. VESPA_MYAPP_API_KEY is exported in the Travis environment, example output:

Setting environment variables from repository settings
$ export VESPA_MYAPP_API_KEY=[secure]

Then, before deploying to Vespa Cloud, regenerate the key value:

$ MY_API_KEY=`echo $VESPA_MYAPP_API_KEY | openssl base64 -A -a -d`

and use ${MY_API_KEY} in the deploy command.

Vespa Cloud upgrades

Vespa upgrades follows the same pattern as for new application revisions in CD tests, and can be tracked via its version number in the Vespa Cloud Console.

System tests are run the same way as for deploying a new application package.

A staging test verifies the upgrade from application package Appold to Appnew, and from Vespa platform version Vold to Vnew. The staging test then consists of the following steps:

1. All production zone deployments are polled for the current Vold / Appold versions. As there can be multiple versions already being deployed (i.e. multiple Vold / Appold), there can be a series of staging test runs.
2. The application at revision Appold is deployed on platform version Vold, to a zone in the staging environment.
3. The staging setup test code is run, typically making the cluster reasonably similar to a production cluster.
4. The test deployment is then upgraded to application revision Appnew and platform version Vnew.
5. Finally, the staging test test code is run, to verify the deployment works as expected after the upgrade.

Note that one or both of the application revision and platform may be upgraded during the staging test, depending on what upgrade scenario the test is run to verify.

Concurrent platform and revision changes

When both a platform upgrade and a revision change are pending, the rollout setting in deployment.xml controls how they interact in production zones:

• simultaneous (default): Revision changes deploy independently of platform upgrades. A revision can catch up to and pass an ongoing platform upgrade.
• leading: When a revision catches up to a platform upgrade, the two changes fuse and roll out together.
• separate: The revision waits for the platform upgrade to complete, unless the upgrade is failing.

With the default simultaneous strategy, a new revision will not be held back by an ongoing platform upgrade.

Next steps

• Read more about feature switches and bucket tests.
• A challenge with continuous deployment can be integration testing across multiple services: Another service depends on this Vespa application for its own integration testing. Use a separate application instance for such integration testing.
• Set up a deployment badge - available from the console's deployment view - example:
• Set up a global query endpoint.
