Architecture

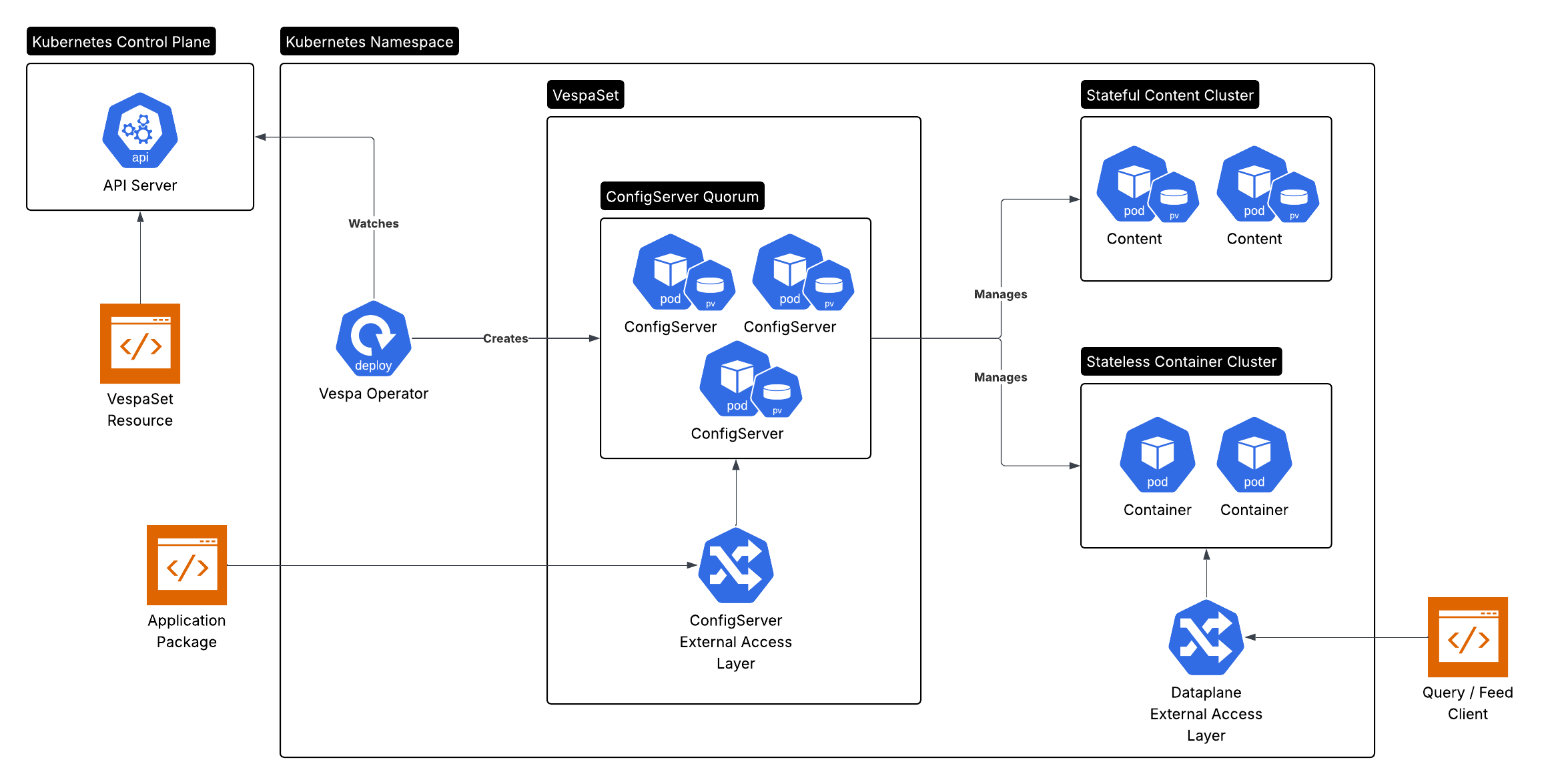

The Vespa Operator is an implementation of the Operator Pattern that extends Kubernetes with custom orchestration capabilities for Vespa. It relies on a Custom Resource Definition called a VespaSet, which represents a quorum of ConfigServers in a Kubernetes namespace. The Vespa Operator is responsible for the deployment and lifecycle of the VespaSet resource and its ConfigServers, which collectively entails the infrastructure for Vespa on Kubernetes.

Application Packages are deployed to the ConfigServers to create Vespa applications. The ConfigServers will dynamically instantiate the services as individual Pods based on the settings provided in the Application Package. After an Application Package is deployed, the ConfigServers will remain responsible for the management and lifecycle of the Vespa application.
