GCP Archive guide

Vespa Cloud exports log data, heap dumps, and Java Flight Recorder sessions to buckets in Google Cloud Storage. This guide explains how to access this data. Access to the data is through a GCP project controlled by the tenant. Data traffic to access this data is charged to this GCP project.

These resources are needed to get started:

• A GCP project
• A Google user account
• The gcloud command line interface

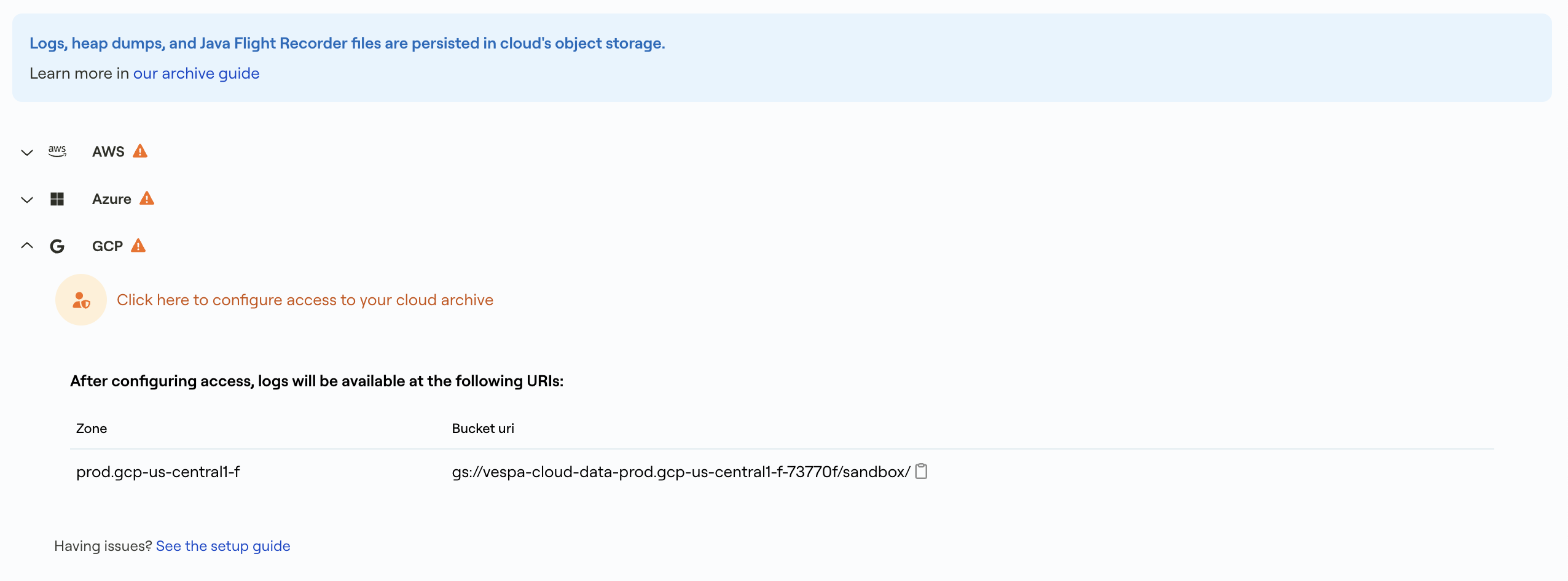

Access is configured through the Vespa Cloud Console in the tenant account screen. Choose the "archive" tab, then expand the GCP section.

Register IAM principal

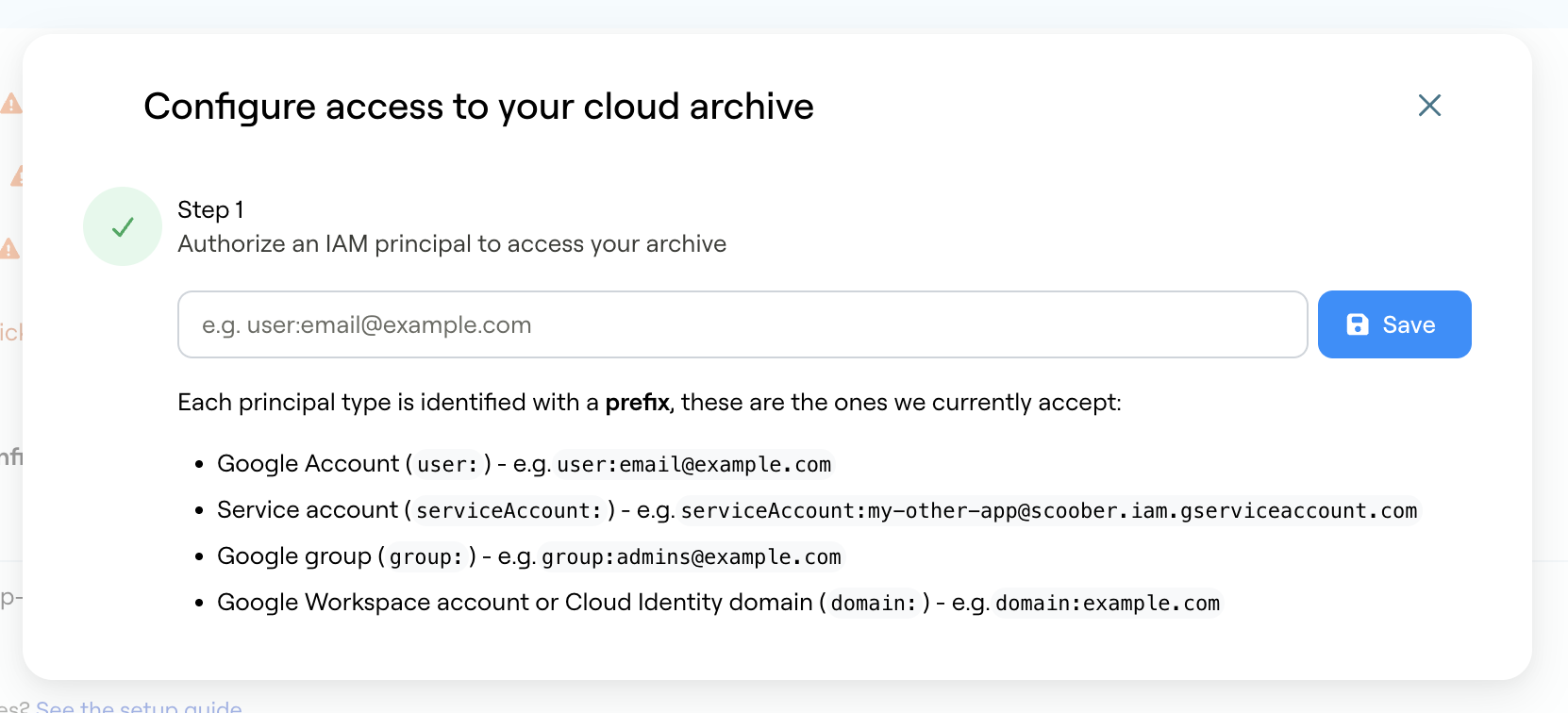

Click Configure access to your cloud archive to open the configuration dialog.

Grant access to Vespa Cloud resources

Enter a principal with a supported prefix and click Save. Vespa Cloud will then grant access to that principal on the Cloud Storage buckets.

Supported principal prefixes:

• user: — Google Account, e.g. user:email@example.com
• serviceAccount: — Service account, e.g. serviceAccount:my-app@project.iam.gserviceaccount.com
• group: — Google group, e.g. group:admins@example.com
• domain: — Google Workspace or Cloud Identity domain, e.g. domain:example.com

Access files using Gcloud CLI

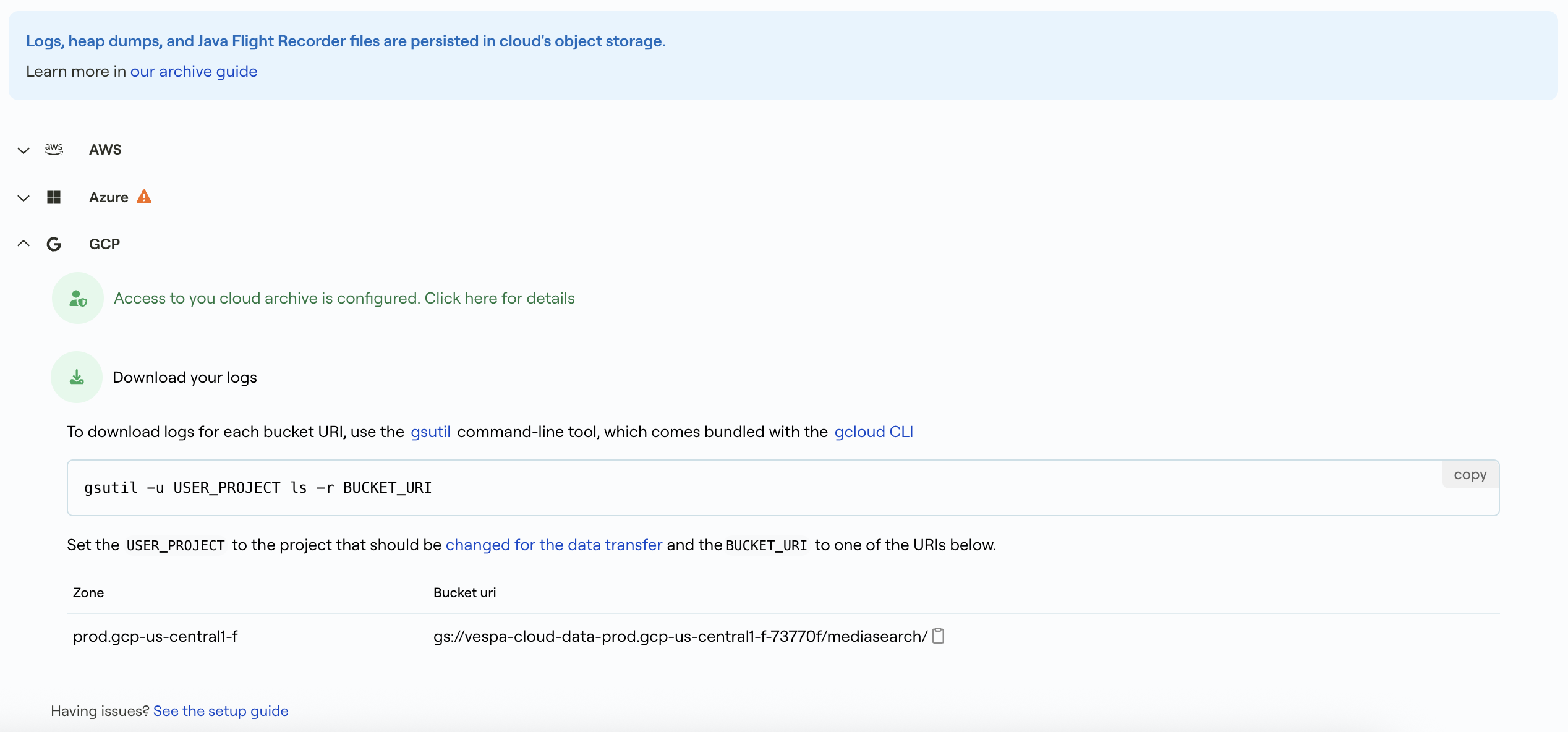

Once permissions have been granted, the GCP member can access the contents of the archive buckets. Any Cloud Storage client will work, but the gsutil command line client is an easy tool to use. The archive page will list all buckets where data is stored, typically one bucket per zone the tenant has applications.

The -u user-project parameter is mandatory to make sure network traffic is charged to the correct GCP project.

$ gsutil -u my-project ls \
  gs://vespa-cloud-data-prod.gcp-us-central1-f-73770f/vespa-team/
        gs://vespa-cloud-data-prod.gcp-us-central1-f-73770f/vespa-team/album-rec-searcher/
        gs://vespa-cloud-data-prod.gcp-us-central1-f-73770f/vespa-team/cord-19/
        gs://vespa-cloud-data-prod.gcp-us-central1-f-73770f/vespa-team/vespacloud-docsearch/

In the example above, the bucket name is vespa-cloud-data-prod.gcp-us-central1-f-73770f and the tenant name is vespa-team (for that particular prod zone). Archiving is per tenant, and a log file is normally stored with a key like:

/vespa-team/vespacloud-docsearch/default/h7644a/logs/access/JsonAccessLog.20221011080000.zst

The URI to this object is hence:

gs://vespa-cloud-data-prod.gcp-us-central1-f-73770f/vespa-team/vespacloud-docsearch/default/h2946a/logs/access/JsonAccessLog.default.20210629100001.zst

Objects are exported once generated - access log files are compressed and exported at least once per hour.

Note: Always set a user project to access the objects - transfer cost is assigned to the requester.
